RX-880CAutomatic Sleeve Sealer Shrink Packing Machine(Bottles group packaging)

RX-880C

Automatic Sleeve Sealer Shrink Packing Machine(Bottles group packaging)

Summary:RX-880A automatic sleeve sealing shrink tunnel machine is designed for packing bolltes, cans, etc with or without bottom tray.(Arrangement: 1*10, 2*5, 3*3, 3*4, 4*6...)
The machine infeed conveyor can be customized to multi row feeding to improve the packing speed.
Mahcine can connect with filling machine and other production line.
Available connecting machine:
1. Automatic filling machine
2. Automatic capping machine
3. Automatic labelling machine
4. Cartoning sealing machine

Packaging effect
RX-880CAutomatic Sleeve Sealer Shrink Packing Machine(Bottles group packaging)包装效果
Video
Product details

1.RX-750/880C引进国外技术及工艺制作,设备性能稳定可靠

2.采用“PLC”可编程程序控制器,实现机、电、气一体化
3.该机可根据生产要求进行两排、三排、四排等有底托或无底托热缩包装,更换包装形式时,只需转换面板上的转换开关
4.采用蜗轮蜗杆减速机,进料输送与送膜时平稳无抖动
5.采用特别设计的封刀,封口线牢固、不开裂、不易粘刀;塑钢材质输送带耐磨损,强度高
6.可根据瓶形选择自动送料装置
7.包装彩膜时,需增加色标定位系统,准确定位
8.模块式设计,更换不同瓶形,亦能瞬间完成
9.进料输送带可根据现场的需要设计成左侧进料或右侧进料的方式
10.RX-880采用进口双运风电机,使炉腔内热风散布均匀,收缩后效果更加美观
11.采用实心钢杆外包进口硅胶管,链杆式输送经久耐用。亦可根据不同产品的采用不同材质的输送链;
12.变频器控制传送速度,无级调速
13.超大风量冷却系统,产品热缩后迅速冷却定型
14.收缩炉后端可选配铝制滚筒工作台,产品包装后不会跌落地面
15.可选配色标跟踪,针对印刷膜。

Technical parameter
Model RX-750C RX-880C
Power supply 380V/50-60Hz
Maximum packing size 380(L)*200(W)*200(H)mm 500(L)*400(W)*320(H)mm
Packing speed 8-20packs/minute
Film type Single layer PE film
Maximum film size 500mm(Width)×280mm(Outer Diameter)
800mm(宽)×280mm(外径)
Power consumption 16KW 20.5KW
Tunnel oven dimension 1500mm(L), 600(W)*300(H)mm
1500mm(L),炉口 600(W)*400(H)mm
Tunnel conveyor speed Variable,30M/Minute
Working plate height 850-950mm
Air pressure 0.5MPa(5 bar)
Sealing knife Special durable alloyed sealing knife with anti-stick Teflon coats

Operating panel

Delta colorful touch screen and PLC, Omron temperature controller
Main material Carbon steel/ Stainless steel Carbon steel/ Stainless steel
Machine weight 700KG 900KG
The above parameters are for reference only, we can provide different solutions for various products dimension.

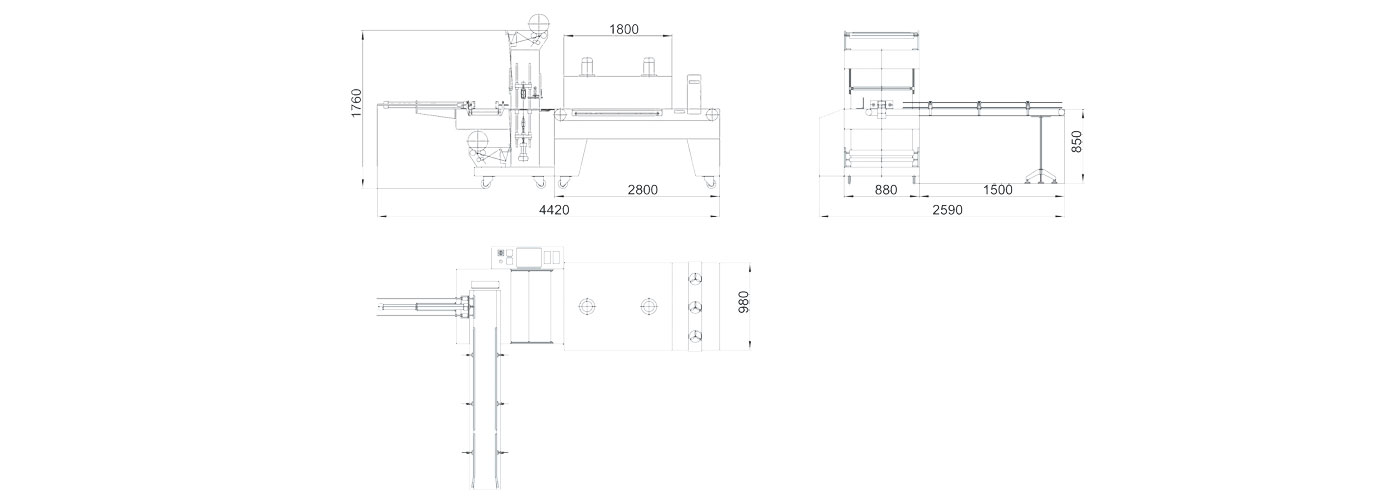

Mechanical plan
RX-880CAutomatic Sleeve Sealer Shrink Packing Machine(Bottles group packaging)机械平面图
