RX-880AAutomatic Sleeve Sealer Shrink Packing Machine（with automatic collate device）
RX-880A
Automatic Sleeve Sealer Shrink Packing Machine（with automatic collate device）
Summary：RX-880A automatic sleeve sealing shrink tunnel machine is designed for packing bolltes, cans, etc with or without bottom tray.(Arrangement: 1*10, 2*5, 3*3, 3*4, 4*6...)
The machine infeed conveyor can be customized to multi row feeding to improve the packing speed.
Mahcine can connect with filling machine and other production line.
Available connecting machine:
1. Automatic filling machine
2. Automatic capping machine
3. Automatic labelling machine
4. Cartoning sealing machine
Packaging effect
Video
Product details
1.RX-750A引进国外技术及工艺制作，设备性能稳定可靠
2.采用“PLC”可编程程序控制器，实现机、电、气一体化3.该机可根据生产要求进行两排、三排、四排等有底托或无底托热缩包装，更换包装形式时，只需转换面板上的转换开关
4.采用蜗轮蜗杆减速机，进料输送与送膜时平稳无抖动
5.采用特别设计的封刀，封口线牢固、不开裂、不易粘刀；塑钢材质输送带耐磨损，强度高
6.可根据瓶形选择自动送料装置
7.包装彩膜时，需增加色标定位系统，准确定位
8.模块式设计，更换不同瓶形，亦能瞬间完成
9.进料输送带可根据现场的需要设计成左侧进料或右侧进料的方式
10.RX-750A采用进口双运风电机，使炉腔内热风散布均匀，收缩后效果更加美观
11.采用实心钢杆外包进口硅胶管，链杆式输送经久耐用。亦可根据不同产品的采用不同材质的输送链；
12.变频器控制传送速度，无级调速
13.超大风量冷却系统，产品热缩后迅速冷却定型
14.收缩炉后端可选配铝制滚筒工作台，产品包装后不会跌落地面
Technical parameter
| Model | RX-750A | RX-880A |
| Power supply | 380V/50-60Hz | |
| Maximum packing size | 380(L)*200(W)*200(H)mm |
500(L)*400(W)*320(H)mm |
| Packing speed | 8-20packs/ minute | |
| Film type | Single layer PE film | |
| Maximum film size |
500mm(Width)×280mm（Outer Diameter） |
800mm(Width)×280mm（Outer Diameter） |
| Power consumption | 16KW |
20.5KW |
| Tunnel oven dimension |
1500mm(L), 500(W)*300(H)mm |
1500mm(L), 600(W)*400(H)mm |
| Tunnel conveyor speed |
Variable，30M/ Minute |
|
| Working plate height |
850-950mm |
|
| Air pressure |
≤0.5MPa(5
bar) |
|
| Sealing knife |
Special
durable alloyed sealing knife with anti-stick Teflon coats |
|
| Operating panel | Delta colorful touch screen and PLC, Omron temperature controller | |
| Machine material | Carbon steel/ Stainless steel |
Carbon steel/ Stainless steel |
| Machine weight | 700KG | 900KG |
| The above paramters for reference only, we can provide differrent customized solutions for various kinds of products dimensions | ||

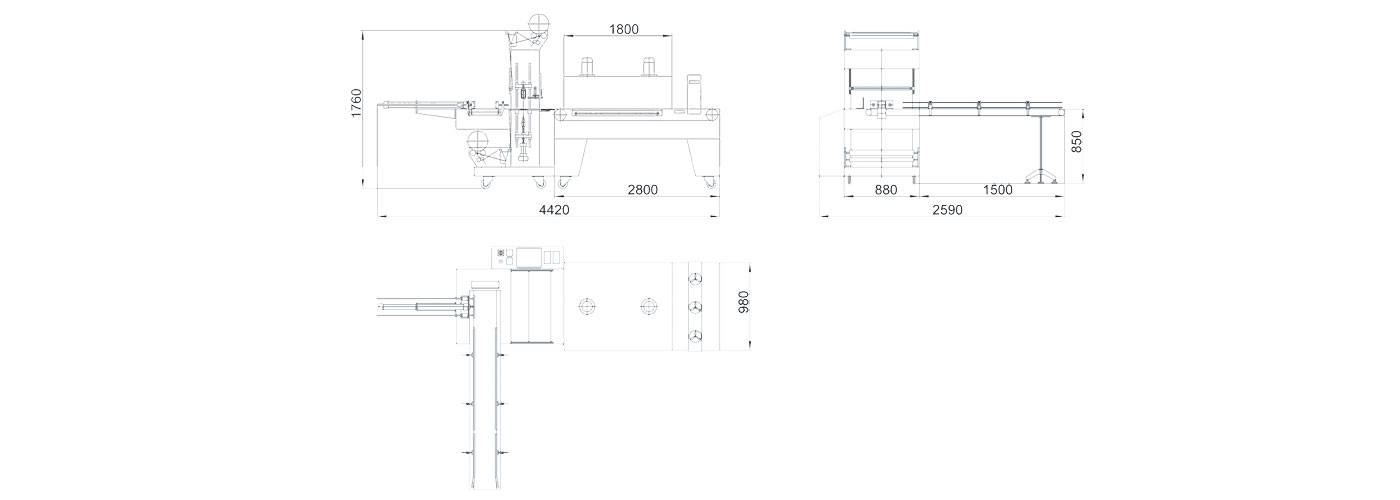

Mechanical plan
