RS-590B
Automatic High Speed Shrink Packing Machine（Bottom film load type）
Summary：RS-590B model is designed and manufactured on the basis of the original foreign equipment, with reasonable mechanism, stable and reliable operation and high yield. It is especially suitable for connection with the production line; Save packaging materials.
Packaging materials: POF single film packaging materials with heat shrinkability optional devices: hot melt code printer, double reel device, automatic feeding device, longitudinal sealing cooling device. Longitudinal sealing form, trimming sealing.
Applicable to: single goods packed with shrink film and multiple smaller bulk goods. Such as: bowl noodles, milk tea, cup products, frozen products, vermicelli, fruit milk, mosquito repellent incense, food boxes, cosmetics, clinker bottles, incense and other single or collective shrink packaging.
Working principle and structural features of the unit:
The articles packed with film are sent to the automatic shrinkage furnace through the output conveyor and run in the shrinkage furnace through the mesh belt. The thermal energy utility in the operation process is to achieve the purpose of shrinkage. The unit adopts stepless speed regulation device; And cooperate with automatic double temperature controller to control the temperature,
Through hot air circulation, the quality of film shrinkage on packaging articles is more stable and beautiful. The unit has high equipment efficiency, compact structure, reliable operation, low noise and convenient maintenance.
Performance characteristics:
1. PLC control is adopted to make the system more stable, reliable and low failure rate
2. Digital display bag length, speed and temperature can be adjusted separately, which is convenient and accurate.
3. Two way tracking to make the pattern sealing and cutting accurate.
4. Position the parking and longitudinal seal automatic opening and closing device to ensure that the film is not damaged.
1. Date printer
2. Automatic bottle sorting machine
3. Automatic feeder
4. Automatic grouping device
|
Model |
RS-590B |
||
|
Sealing type |
Bottom + Top |
||
|
Maximum film size |
≤590mm |
||
|
Packing size |
Height |
H：5mm-50mm |
H：50MM-120MM |
|
Width |
W：10mm-200mm |
||
|
Length |
L：60mm-450mm |
||
|
Packing size limit |
（Width + Height）*2+100mm≤590mm |
||
|
Film type |
Single layer POF film |
||
|
Power supply |
Sealing machine |
Single phase; 220V/50Hz |
|
|
Shrink tunnel |
Three phase; 380V/50Hz |
||
|
Power consumption |
Sealing machine |
4.5KW |
|
|
Shrink tunnel |
16KW |
||
|

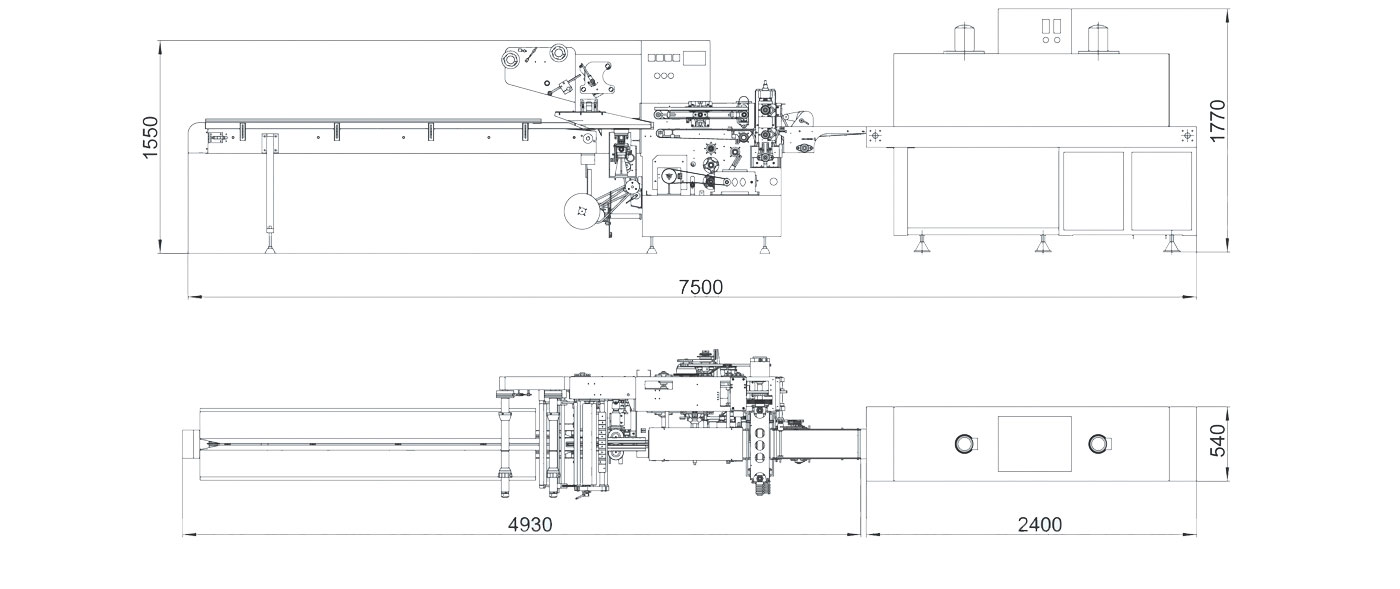

Machine dimenison |
Sealing machine：4930*1130*1500mm |
Shrink tunnel：2400*600*1550 |
|
|
Machine weight |
Sealing machine：1000KG |
Shirink tunnel：600KG |
|
|
Machine material |
Carbon steel |
||
